Details

【Compatible with Small Batteries】Moman DVBP is only suitable with mini v mount batteries with width less than 75mm.

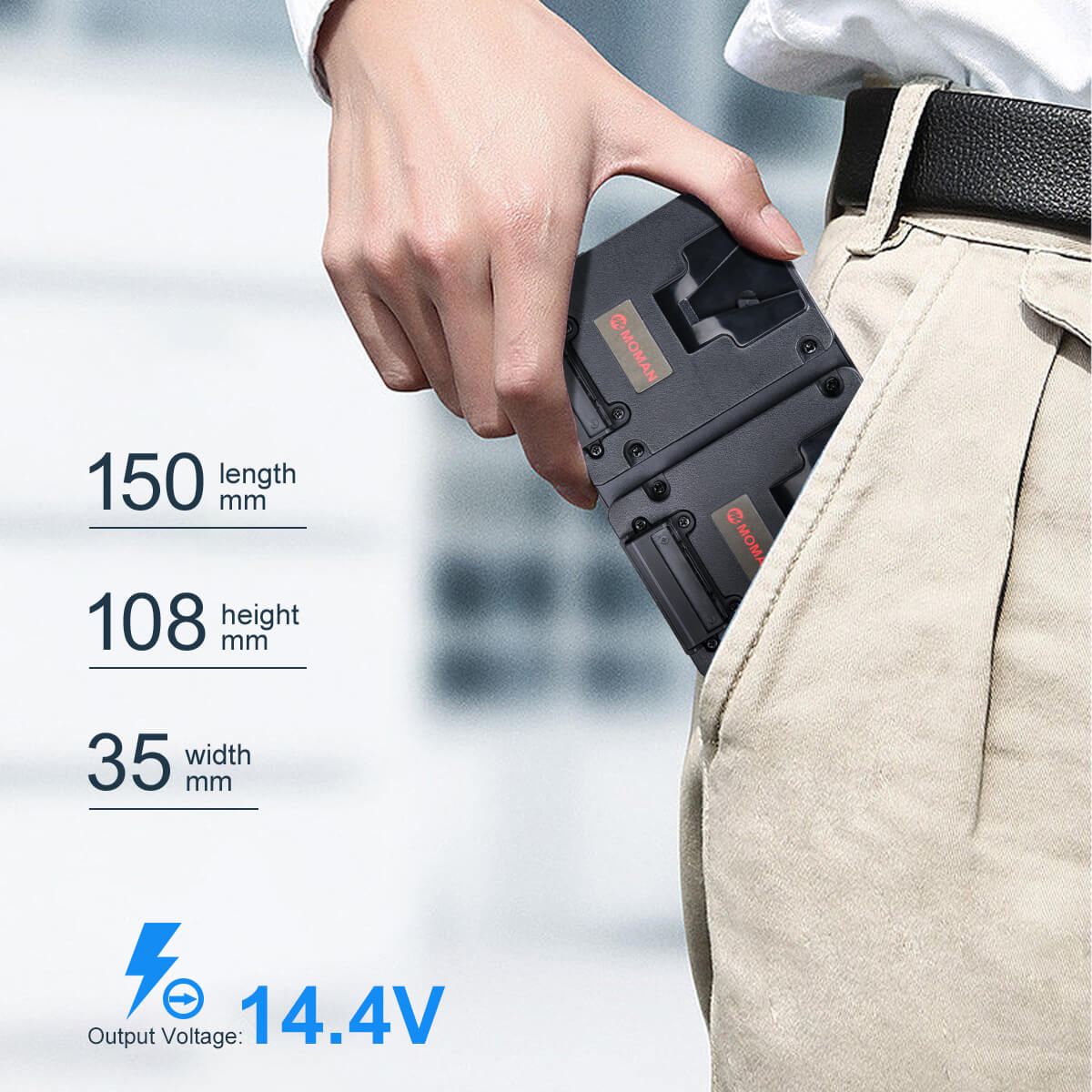

【Light and Portable】Moman DVBP v lock battery mounting plate features a mini construction of 5.91*4.25*1.38 inches and dimensions of 0.53lbs.

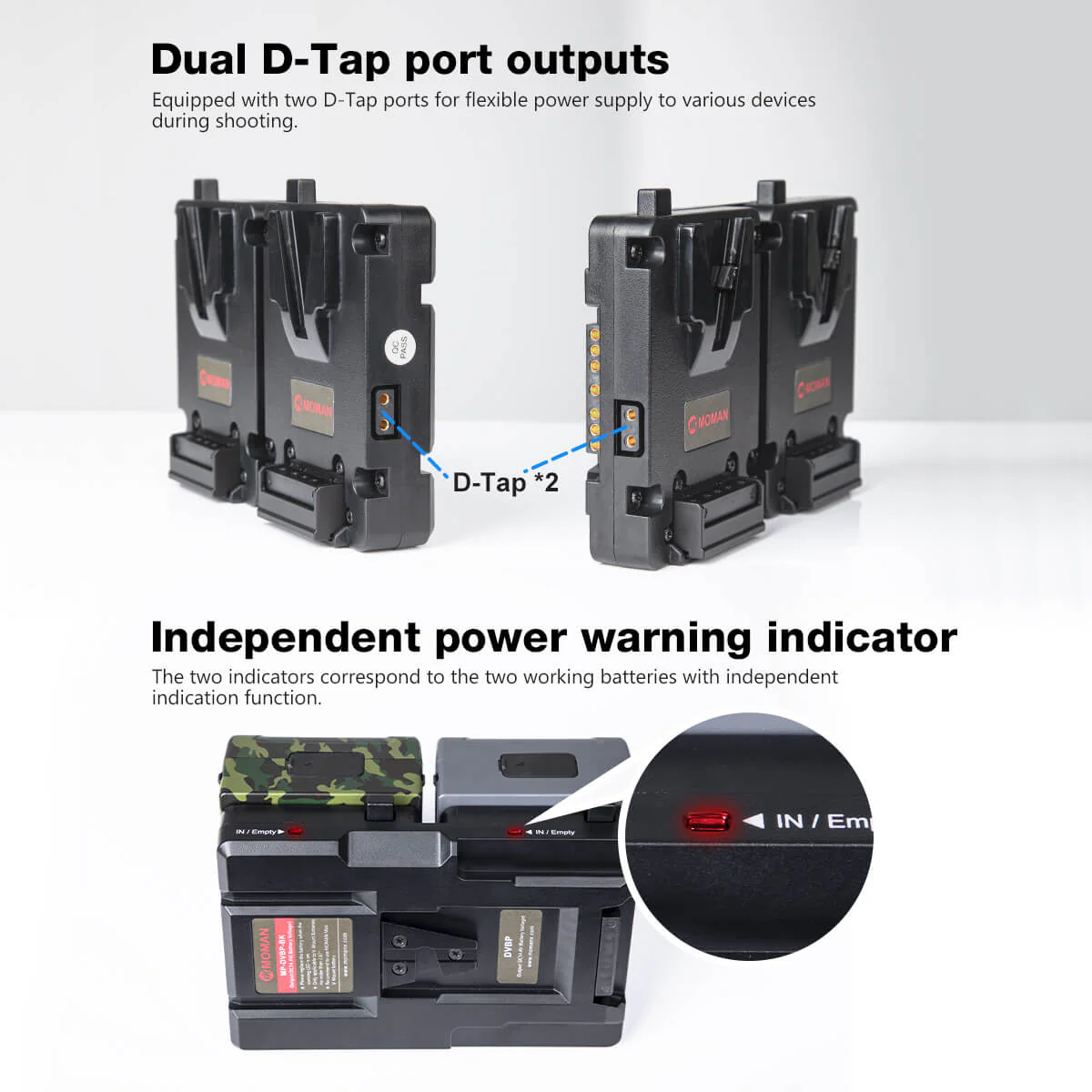

【Low Battery Warning】It has a LED warning light on the side. When the batteries attached, the corresponding red indicator up solid and goes off after about 10 seconds, which means the battery input is recoginzed by the channel. And it will keep flashing to tell you the battery voltage is low.

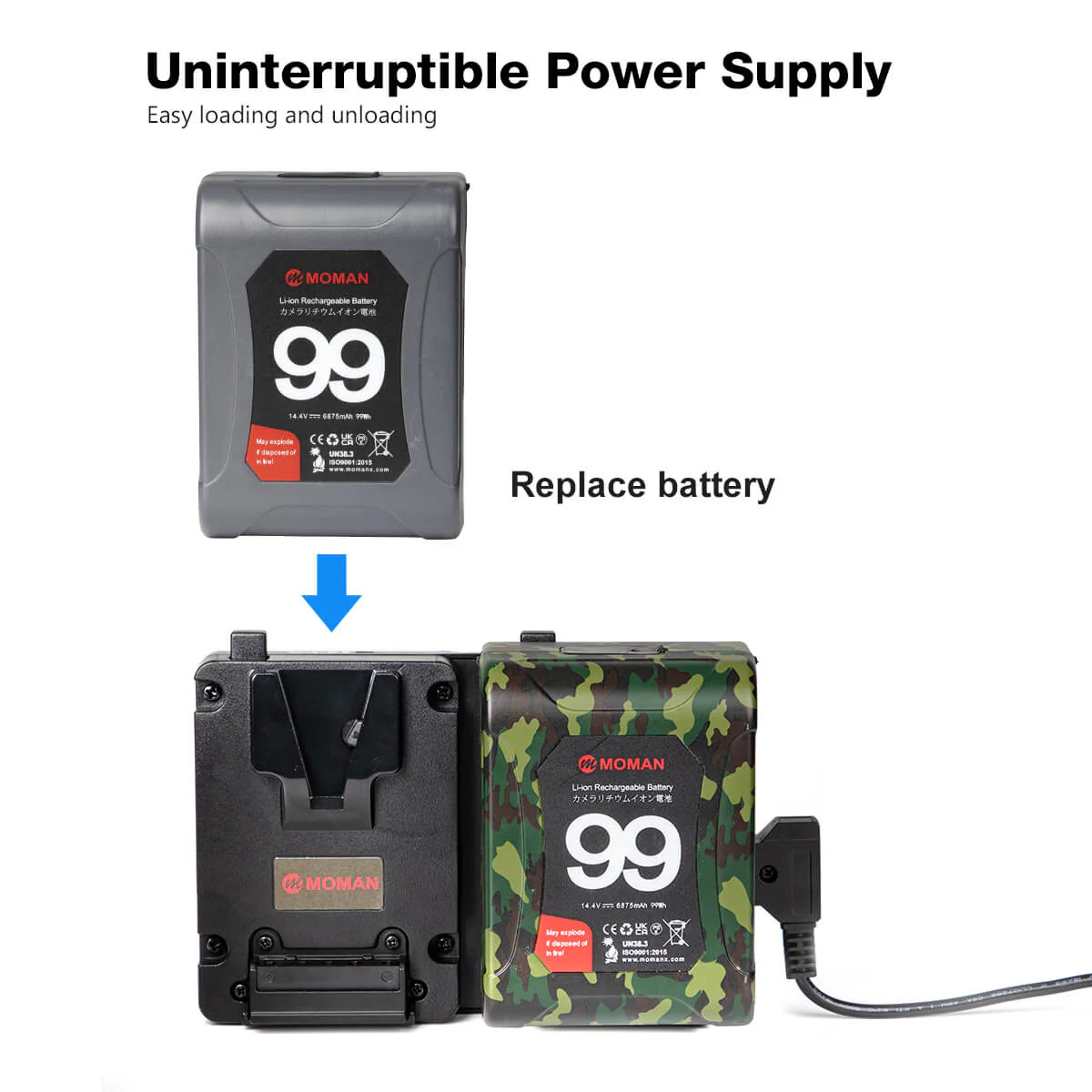

【Dual Continuous Power Supply】dvbp v-mount battery plate for ring grip allows to hot swap two batteries for continuous power. It can intelligently identify load power and automatically switch to simultaneous or sequential power supply.

Specifications

Input	V-lock battery*2
Output	V-lock battery*1
Rated voltage	14.4V
Max output power	Sequential power supply	Max. output power is the same as that of a single battery when two identical batteries attached.
		Max. output power is the same as the low-power battery when two different batteries attached.
	Simultaneous power supply	Max. output power is twice as that of a single battery when two identical batteries attached.
		Max. output power is the same as the low-power battery when two different batteries attached.
Work temp.	-10°C ~ 50°C
Weight	Mini v mount battery plate of 5.91*4.25*1.38 inches
Dimensions	0.51lbs

Downloads

• Moman DVBP User Guide (English)
